Configuring beroNet VoIP Gateway with CloudNippon
Step 1: Click below link to download CloudNippon SIP profile:
Please login into beroNet Gateway
Default IP: 10.0.0.2
Step 5: We must need firmware 16.x to upload the CloudNippon SIP Profile.
We have to upload the CloudNippon SIP profile under SIP profile management as shown below.
Step 6: Now you can able to see the CloudNippon SIP profile under VoIP provider as shown below.
Step 7: Go to Sip –> Press Add button
Step 8: Select SIP profile –> VoIP Provider –> CloudNippon–> Press Next button
Step 9: To get CloudNippon Account Details, please contact http://www.cloudnippon.com/
Step 11: To apply the settings click activate button.

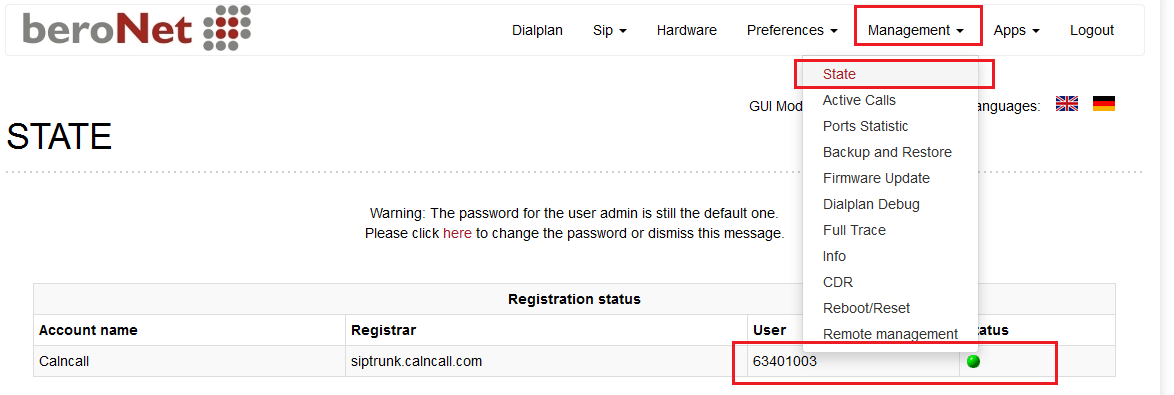

Step 12: To see the CloudNippon SIP Trunk registration status Go to Management –> State

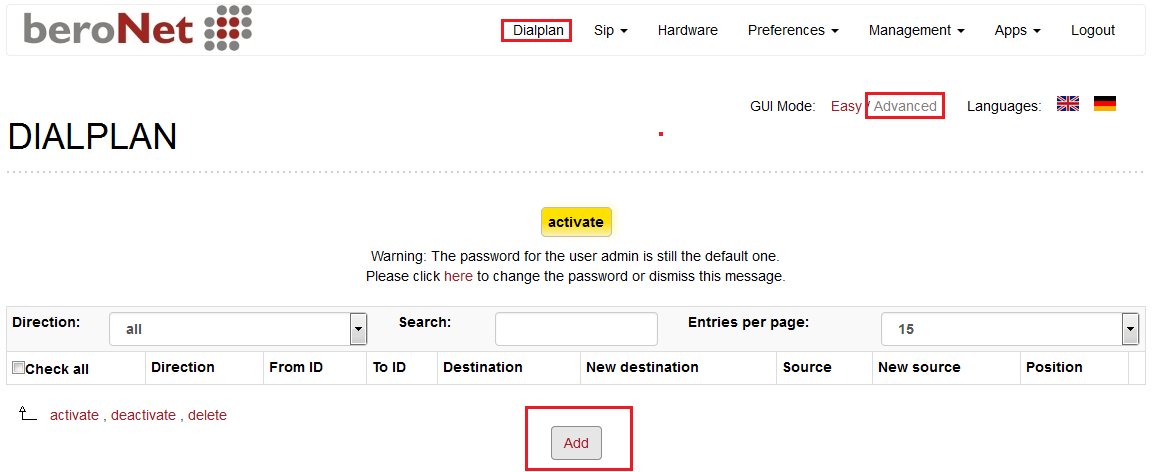

Step 13: In order to make / receive calls via CloudNippon SIP Trunk as shown below figure.
For more details about BeroNet dial plan, please visit:
